GT-0J2 New Design 16'' Mountain Electric Bicycle Out Door With Fat Tire Ebike
Details:
![电动山地自行车胖胎户外运动自行车-12]()
![电动山地自行车胖胎户外运动自行车-13]()
![电动山地自行车胖胎户外运动自行车-14]()
![电动山地自行车胖胎户外运动自行车-15]()
![电动山地自行车胖胎户外运动自行车-16]()
![电动山地自行车胖胎户外运动自行车-17]()
![电动山地自行车胖胎户外运动自行车-18]()
![电动山地自行车胖胎户外运动自行车-19]()
![电动山地自行车胖胎户外运动自行车-20]()
![电动山地自行车胖胎户外运动自行车-21]()
GT-0J2 New Design 16'' Mountain Electric Bicycle Out Door With Fat Tire Ebike
| Maximum speed | 25KM | |
| Cruising range | 25km(25°C windless 75kg weight asphalt flat road 20km/h speed uniform speed test results) | |
| Battery | 36V7.8Ah | |
| Cell | 18650 cell | |
| Controller | 36V 15A | |
| Meter | Integrated handlebar with power display | |
| Climbing angle | Approx. 30% (slope) equal to approx. 20 degrees (condition: 75Kg) | |
| Cycling surface | Cement, asphalt, flat dirt pavement, no higher than 5cm steps, no more than 3cm wide trenches | |
| Drive mode | Rear-drive | |

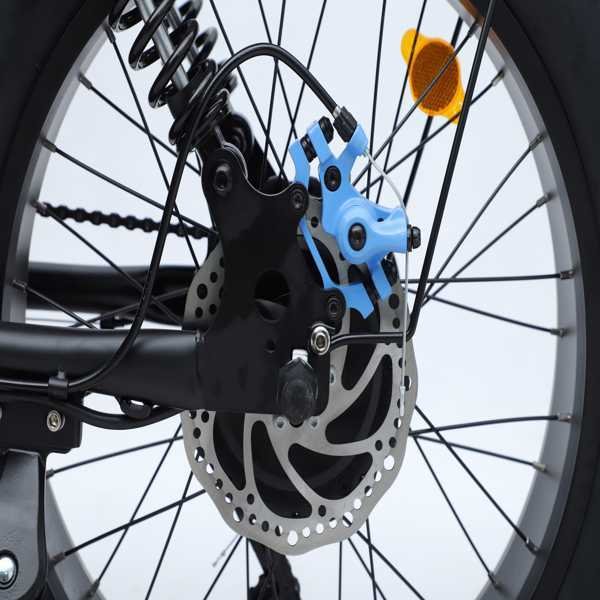

| Braking method | Front and rear disc brakes | |
| Braking distance | 22km/h speed 1. Single brake braking distance ≤ 7m in dry state 2. Double brake The braking distance is ≤ 4.4m in dry state | |
| Charging time | About 6 hours | |
| Charging temperature range | Available(-10~40°C) Recommendation(-10~30°C) | |
| Rated load | ≤100kg | |
| Headlights | LED, the running lights are on when the vehicle is on, and the switch controller headlights are on/off | |
| Taillight | LED, the running light is on when the vehicle is on, and the brake light is on when braking | |
| speakers | Switch control | |
| Frame | High carbon steel | |
| Front wheel | Driven wheels 16*3.0 (spoke hub) pneumatic tires 160 brake discs | |
| Rear wheels | 36V 250W drive wheels 16*3.0 pneumatic tires 160 brake discs | |
| tire | 16 inches | |
| Shock absorption | Double shock absorption at the front and rear | |
| Operating temperature | (-10~40℃) | |
| Storage temperature | Available(-20~40°C) Recommendation(5~30°C) | |
| Maximum storage time | Factory condition (70% charge) ~ 120days Dead state< 30days | |
| wheelbase | 845mm | |
| Ground clearance | 110mm | |
| Steering angle | 54 ° | |
| fold | Not collapsible | |
| Parking method | Rack parking | |

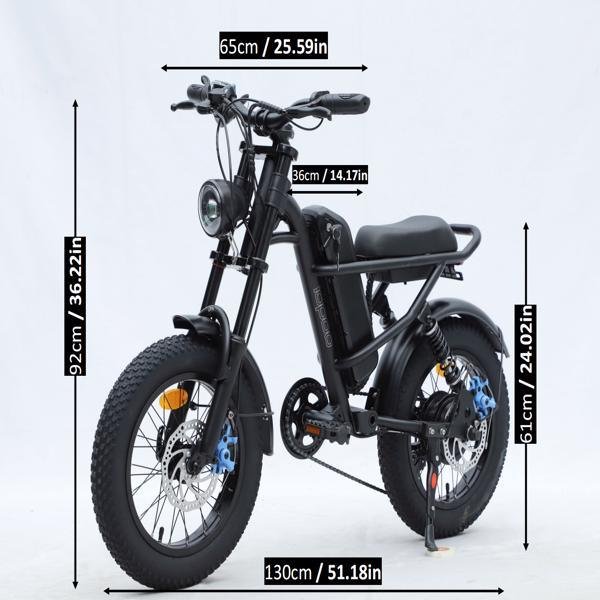

| Vehicle dimensions | 1300mm×650mm×920mm | |
| Vehicle protection | IP34 | |
| charger | External 42V 1.7A | |
| wrap | description | |
| Packaging style | simple | |
| Outer box material | ABC flute 7 layers | |
| Outer box pattern | simple | |
| Package size | 1110mm*250mm*730mm | |
| Cushioning material | EPS | |
| net weight | 25.7KG | |
| gross weight | 29.7KG | |
